2017+ Can-Am X3 Stage 6 Audio System (Gen-3)

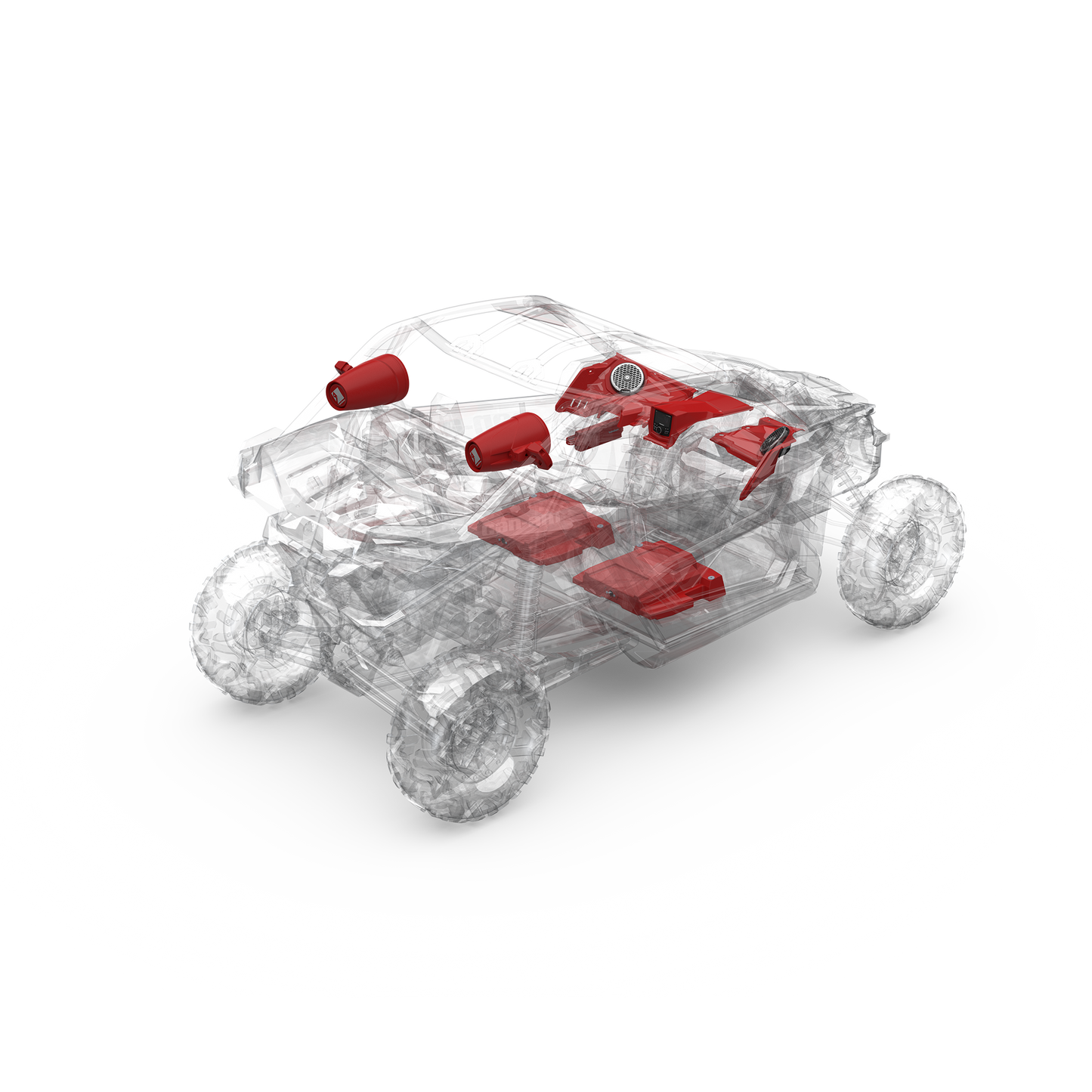

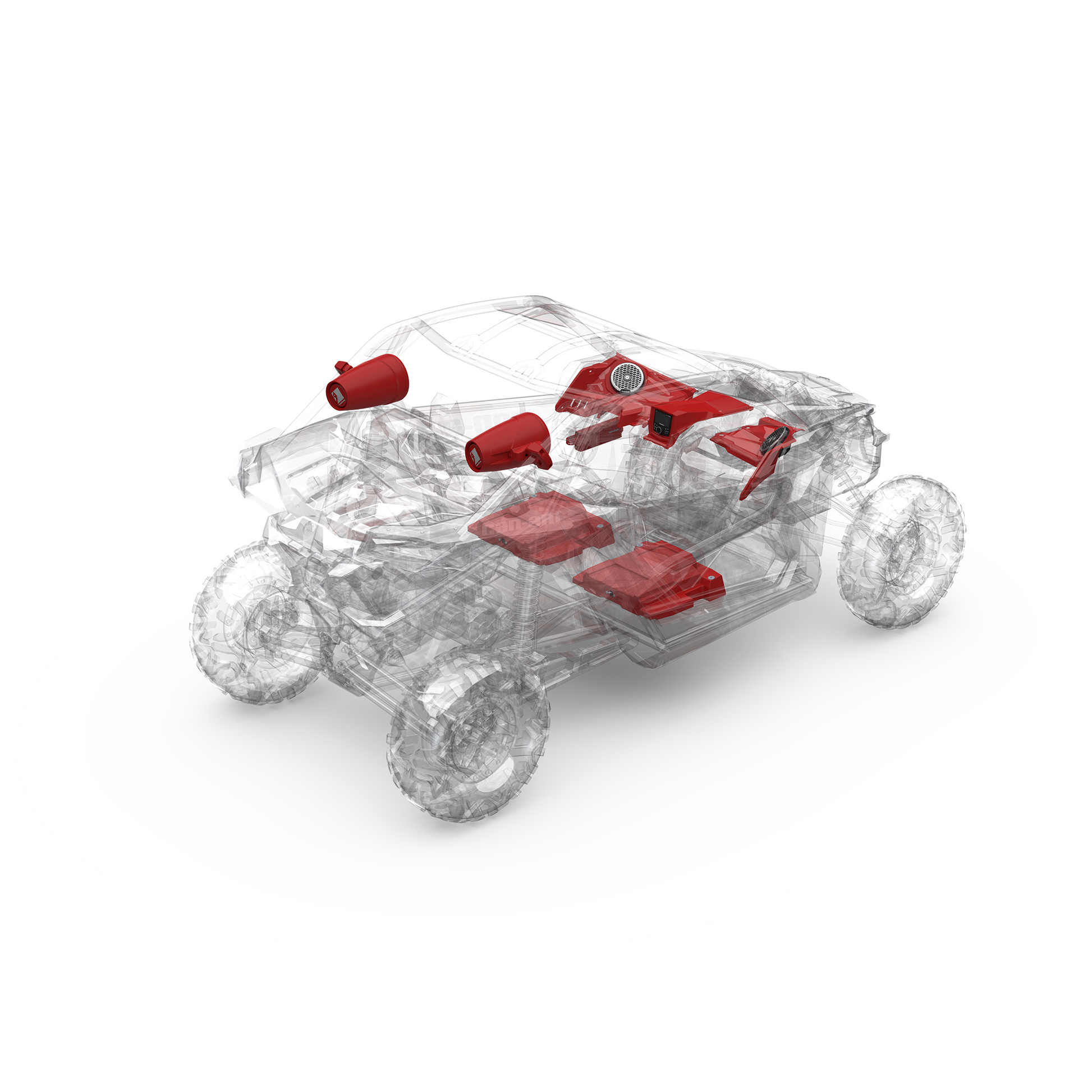

Stage 6 audio upgrade kit for select 2017-up Can-Am Maverick X3 models: includes receiver, four speakers, 5-channel amplifier, and two 10" subwoofers

Product highlights:

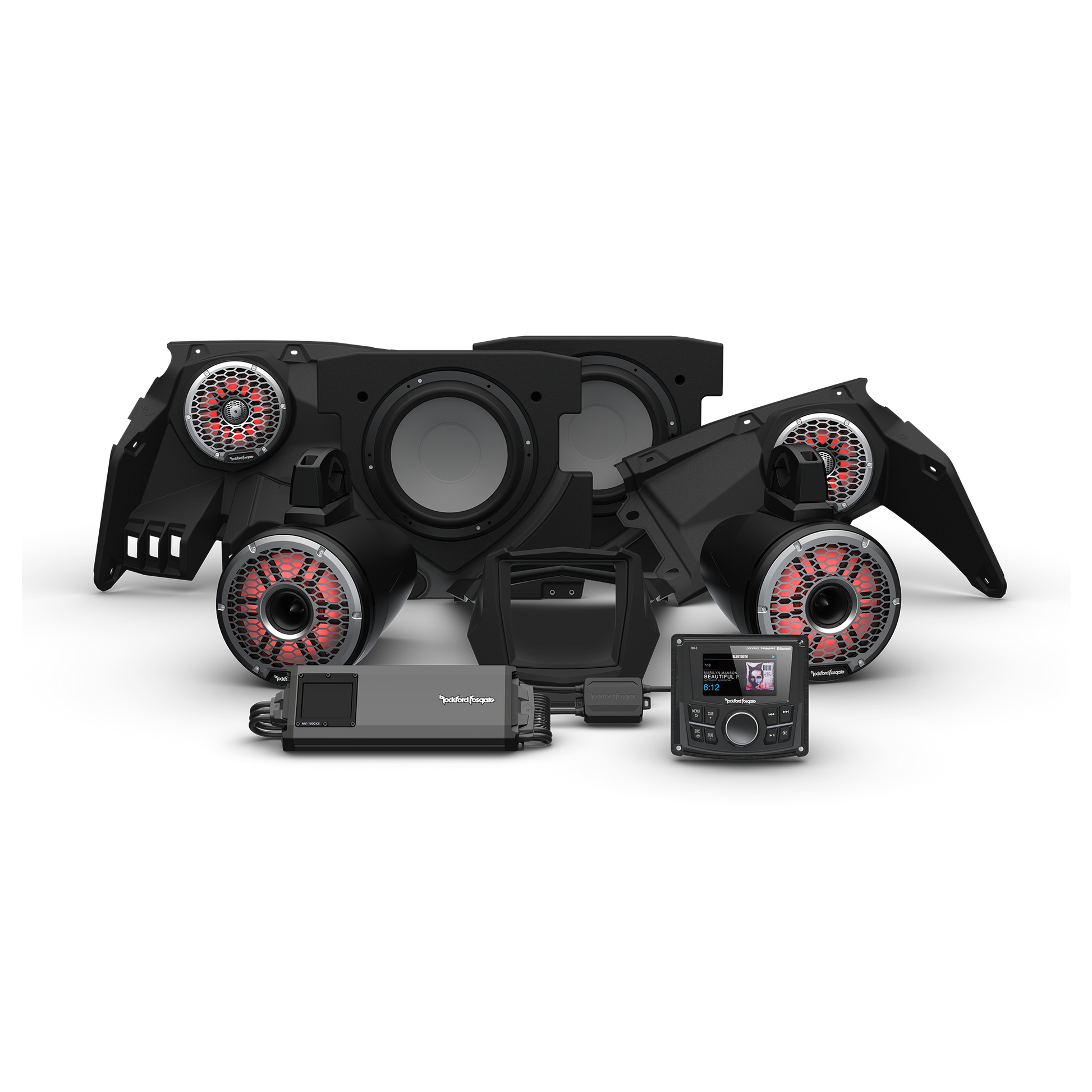

• Element Ready UTV system includes digital media receiver, 6-1/2" front and 8" rear speakers, a 5-channel amp, and two 10" subwoofers
• also includes front and rear speaker pods, sub enclosures, a Color Optix controller, wiring, amp kit and mounting plate

Rockford Fosgate PMX-3 digital media receiver

• marine digital media receiver with camera input (does not play CDs)
• built-in amplifier (25 watts RMS CEA2006/50 peak x 4 channels)
• built-in Bluetooth for music streaming (will not make calls)
• USB port and aux in
• works with SiriusXM satellite radio tuner (sold separately)
• works with Apple and Android smartphones

Rockford Fosgate M2-65B 6-1/2" 2-way marine speakers

• power handling up to 150 watts RMS (600 watts max)
• injection-molded mineral-filled parabolic polypropylene cone
• 1" bridge-mounted tweeter
• warranty: 2 years

Rockford Fosgate M2WL-8HB 8" roll bar speakers

• power handling: 300 watts RMS (1200 watts peak power)
• 360° rotational mounting capability for unlimited flexibility
• high-density sealed polyethylene enclosures with stainless steel grilles
• warranty: 2 years

Rockford Fosgate M1D2-10IB 10" marine subwoofer (pair)

• power handling: 400 watts RMS/1600 watts peak
• sensitivity: 90.3 dB
• selectable impedance: 1 or 4 ohms
• IP67 certification
• warranty: 2 years

Rockford Fosgate M5-1500X5 5-channel amp

• 100 watts RMS x 4 + 600 watts x 1 at 2 ohms
• 100 watts RMS x 4 + 400 watts x 1 at 4 ohms
• conformal-coated circuit board — suitable for power sports and marine applications
• top-mounted control panel with waterproof smoked lens

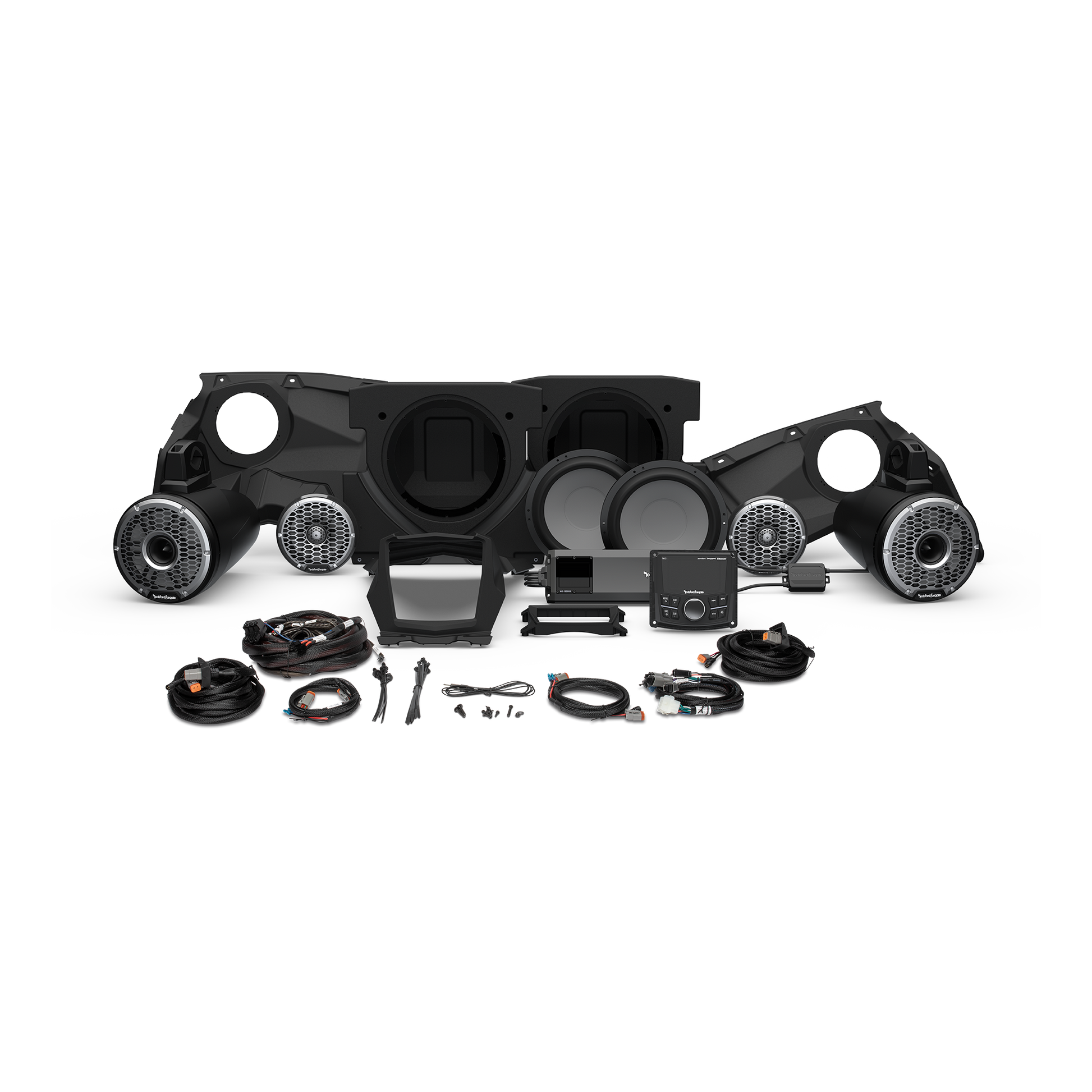

What's in the box:

• This Rockford Fosgate package contains 11 individually boxed items:
• PMX-3 Digital Media Receiver:
• Marine digital media receiver
• Trim-ring
• Mounting plate
• Mounting bracket
• Wiring harness
• Backstrap
• 4 Machine screws
• 4 Hex-nuts
• Installation/Operation booklet
• M2-65B 6.5" Speakers:
• Two 2-way marine speakers
• 2 Centrex plastic grilles (Black)
• 2 Stainless steel grilles
• 2 Grille rings (Black)
• Two 11" LED power harnesses with 4-pin Deutsch connectors on one end
• Twelve 1-3/4" Stainless steel Allen head screws
• 3mm Allen head bit
• 3.5mm Drill bit
• Contact information
• M5-1500X5 Amplifier:
• 5-Channel powersports amplifier
• 11" Power/ground/turn-on & subwoofer output harness (installed on amp)
• 11" Input harness (installed on amp)
• Three 14" RCA-to-Molex input adapters
• Power/ground/turn-on adapter plug
• Subwoofer output adapter plug
• Two 7.5" speaker output harnesses
• 3mm Allen key
• Owner's manual
• Performance certificate
• Contact information
• M2WL-8HB Horn Waketower Speakers:
• Two M2 8" waketower speakers (black) w/stainless steel grilles
• 2 Plastic sport grilles (black)
• 2 Upper mounting brackets
• 2 Lower mounting brackets
• Four 2.5" - 3.0" rubber shims w/mounting hardware (four 2-5/8" bolts / 4 flat washers / 4 lock washers)
• Four 2.5" - 3.0" rubber shims w/mounting hardware (four 1-3/4" bolts / 4 flat washers / 4 lock washers)
• Two 12" 6-pin wire harnesses w/Deutsch connectors
• 2 Connection cover-plates
• 4 Plastic grommets
• 1/8" Hex bit
• T-45 Torx wrench
• Instruction manual
• Contact information card
• X317-M2FWE 10" Subwoofer (x2):
• Custom enclosure loaded with one M2D2-10B 10" subwoofer
• 2 Mounting brackets
• 9.5' 2-Wire harness
• Fourteen 8" wire ties
• Four 6.5" wire ties w/push-fasteners
• Six 12mm hex-socket screws
• Contact information
• PMX-RGB Light Controller:
• PMX-RGB LED Controller w/ attached 17" LED cables and 17" power/ground harness (inline 2A ATC fuse)
• 6" Power/ground harness adapter
• Two 3/4" machine-screws
• 2 Nuts
• 2 Lock-washers
• Installation manual
• X317-DK Dash Kit:
• Radio housing
• Trim ring
• Rear support plate
• 35" Speaker harness
• 6' Wire antenna (Motorola plug on one end / bare-ended wire on other end)
• Two 24mm screws
• Eight 1/2" screws
• Twelve 8" wire-ties
• Contact information card
• X317-FSE Speaker Enclosures:
• 2 Unloaded speaker enclosures
• 35" Left front speaker harness
• 52" Right front speaker harness
• Five 8" wire ties
• One 30mm bolt
• 1 Flat washer
• 1 Nut
• 2 Warning decals
• Contact information
• MX-RSW16 Rear Speaker Harnesses:
• Two 17.5' Rear speaker harnesses
• Six 6" wire-ties w/ push-fastener ends
• Sixteen 7.5" wire-ties
• Contact information card
• X317-K4 Amplifier Wiring Kit:
• 11' 4-AWG Wiring harness (inline 100A maxi-fuse) w/attached 4' RCA/speaker harness
• Y-Harness
• Mounting plate
• 2 Brackets
• Fourteen 8" Wire ties
• Four 6.5" wire ties w/push-fasteners
• Four 10mm screws
• 2 Hex nuts
• 1 Flange nut
• Installation instructions
