JS Powersports
2017+ Can-Am X3 Stage 5 Audio System (Gen-3)
2017+ Can-Am X3 Stage 5 Audio System (Gen-3)
Regular price
$3,699.99 USD
Regular price
Sale price
$3,699.99 USD
Unit price
/
per
Couldn't load pickup availability

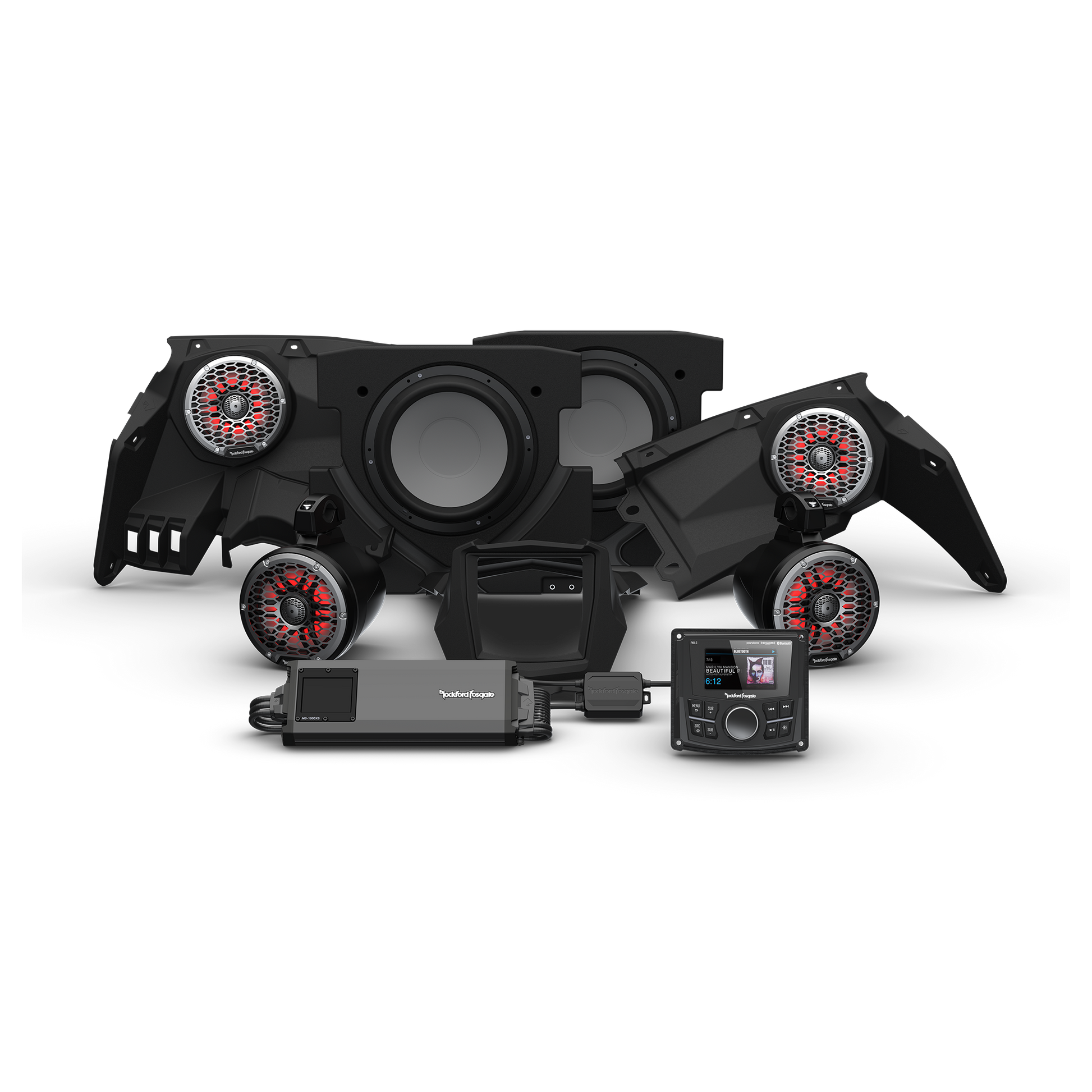

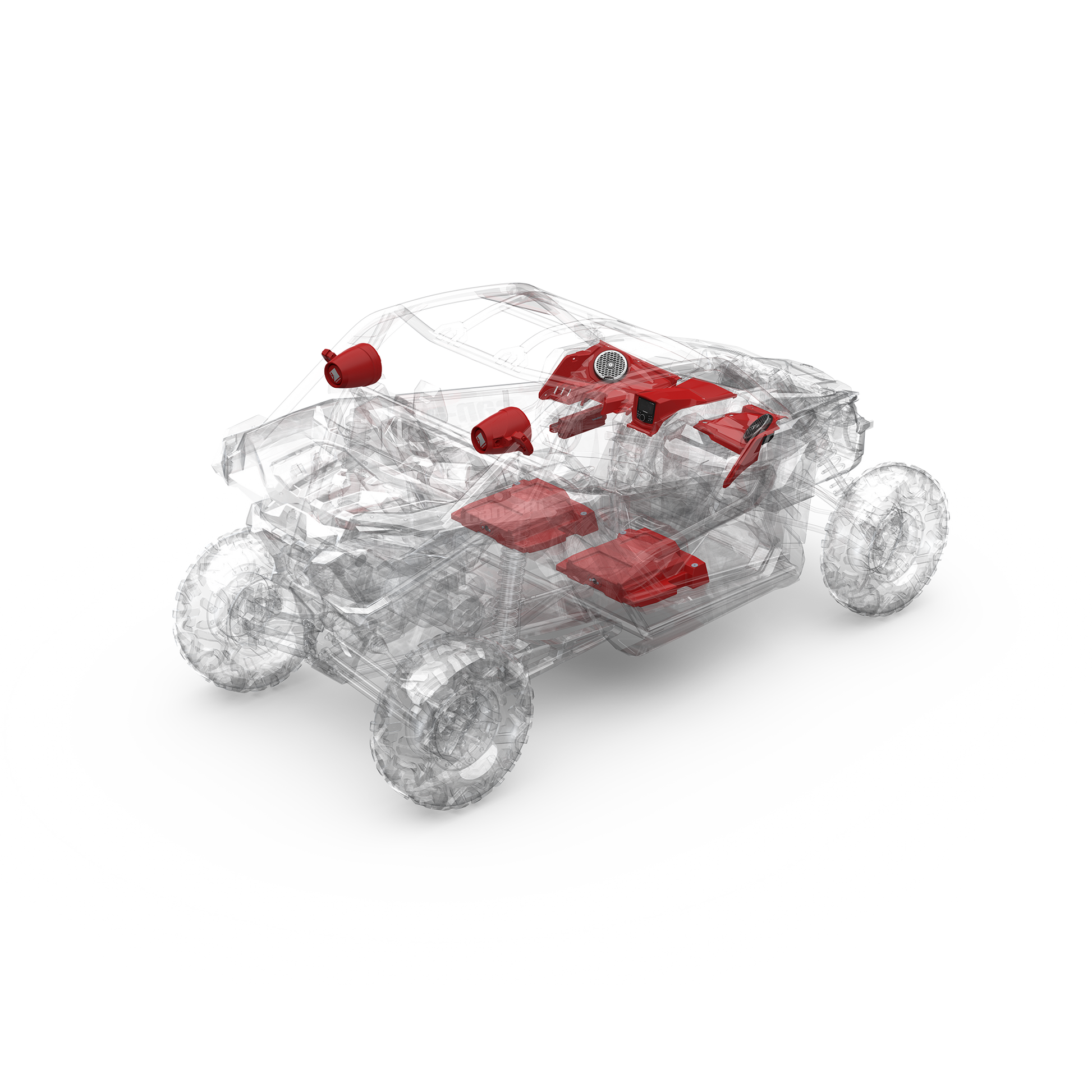

f you want to take things to the next level then the X3 Stage 5 kit is for you. Featuring all the same hardware as the Stage 4 kit, we've upgraded the speakers and minicans to our Punch PM series for even more output. We're including our Power small chassis 5-channel amplifier ramping the power total up to a whopping 1,000 watts and the subwoofer option is upgraded with an additional under seat enclosure that allows for all factory seating adjustments and positions with a 10 inch Prime woofer. If you're ready to be the loudest and baddest X3 on the ride then you've found exactly what you need. Compatible with factory equipped Smart-Lok module. 2017+ Can-Am Maverick X3 Stage-5 Installation
Product highlights:
- Element Ready UTV system includes digital media receiver, two sets of 6-1/2" speakers, a 5-channel amp, and two 10" subwoofers
- also includes front and rear speaker pods, sub enclosures, a Color Optix controller, wiring, amp kit and mounting plate
Rockford Fosgate PMX-3 digital media receiver
- marine digital media receiver with camera input (does not play CDs)
- built-in amplifier (25 watts RMS CEA2006/50 peak x 4 channels)
- built-in Bluetooth for music streaming (will not make calls)
- USB port and aux input
- works with SiriusXM satellite radio tuner (sold separately)
- works with Apple and Android smartphones
- warranty: 2 years
Rockford Fosgate M2-65B 6-1/2" 2-way marine speakers
- power handling up to 150 watts RMS (600 watts max)
- injection-molded mineral-filled parabolic polypropylene cone
- 1" bridge-mounted tweeter
- warranty: 2 years
Rockford Fosgate M2WL-65MB 6-1/2" roll bar speakers
- power handling: 150 watts RMS (600 watts peak power)
- 360° rotational mounting capability for unlimited flexibility
- high-density sealed polyethylene enclosures with stainless steel grilles
- warranty: 2 years
Rockford Fosgate M1D2-10IB 10" marine subwoofer (pair)
- power handling: 400 watts RMS/1600 watts peak
- sensitivity: 90.3 dB
- selectable impedance: 1 or 4 ohms
- IP67 certification
- warranty: 1 year
Rockford Fosgate M5-1500X5 5-channel amp
- 100 watts RMS x 4 + 600 watts x 1 at 2 ohms
- 100 watts RMS x 4 + 400 watts x 1 at 4 ohms
- conformal-coated circuit board — suitable for power sports and marine applications
- top-mounted control panel with waterproof smoked lens

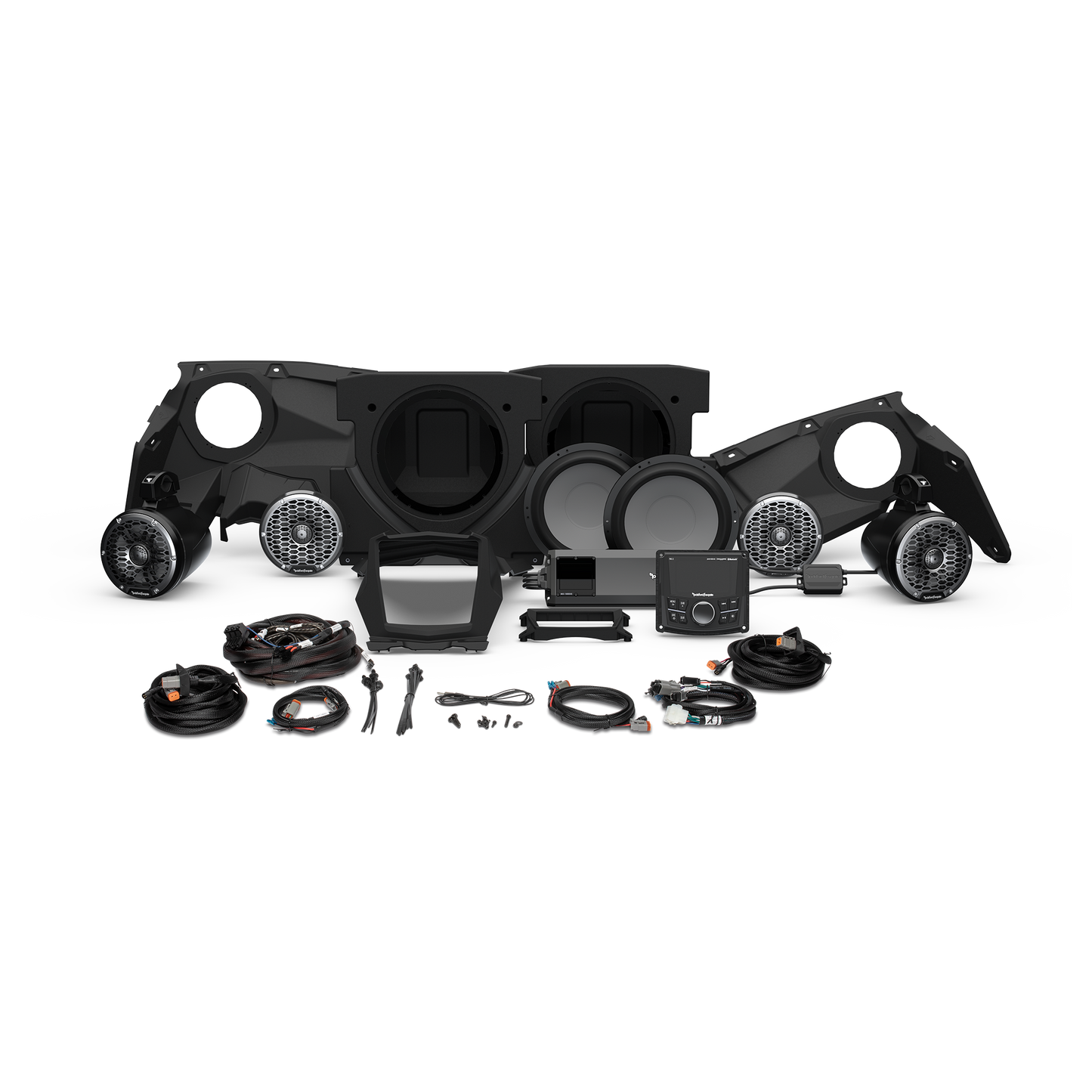

What's in the box:
- This Rockford Fosgate package contains 11 individually boxed items:
- PMX-3 Digital Media Receiver:
- Marine digital media receiver
- Trim-ring
- Mounting plate
- Mounting bracket
- Wiring harness
- Backstrap
- 4 Machine screws
- 4 Hex-nuts
- Installation/Operation booklet
- M2-65B 6.5" Speakers:
- Two 2-way marine speakers
- 2 Centrex plastic grilles (Black)
- 2 Stainless steel grilles
- 2 Grille rings (Black)
- Two 11" LED power harnesses with 4-pin Deutsch connectors on one end
- Twelve 1-3/4" Stainless steel Allen head screws
- 3mm Allen head bit
- 3.5mm Drill bit
- Contact information
- M5-1500X5 Amplifier:
- 5-Channel powersports amplifier
- 11" Power/ground/turn-on & subwoofer output harness (installed on amp)
- 11" Input harness (installed on amp)
- Three 14" RCA-to-Molex input adapters
- Power/ground/turn-on adapter plug
- Subwoofer output adapter plug
- Two 7.5" speaker output harnesses
- 3mm Allen key
- Owner's manual
- Performance certificate
- Contact information
- M2WL-65MB Enclosed Rear Speakers:
- Two M2 6.5" Moto-Can speakers w/stainless steel grilles installed
- 2 Black plastic sport grilles
- 2 Upper mounting brackets
- 2 Lower mounting brackets
- Four 1.0" - 1.6" rubber shims w/mounting hardware (four 1-3/8" bolts / 4 flat washers / 4 lock washers)
- Four 1.6" - 2.0" rubber shims w/mounting hardware (four 1-3/4" bolts / 4 flat washers / 4 lock washers)
- Two 12" 6-pin wire harnesses w/Deutsch connectors and integrated rubber seals
- 2 Connection cover-plates
- 4 Plastic grommets
- 1/8" Hex bit
- T-45 Torx wrench
- Instruction manual
- Contact information card
- X317-M2FWE 10" Subwoofer (x2):
- Custom enclosure loaded with one M2D2-10B 10" subwoofer
- 2 Mounting brackets
- 9.5' 2-Wire harness
- Fourteen 8" wire ties
- Four 6.5" wire ties w/push-fasteners
- Six 12mm hex-socket screws
- Contact information
- PMX-RGB Light Controller:
- PMX-RGB LED Controller w/ attached 17" LED cables and 17" power/ground harness (inline 2A ATC fuse)
- 6" Power/ground harness adapter
- Two 3/4" machine-screws
- 2 Nuts
- 2 Lock-washers
- Installation manual
- X317-DK Dash Kit:
- Radio housing
- Trim ring
- Rear support plate
- 35" Speaker harness
- 6' Wire antenna (Motorola plug on one end / bare-ended wire on other end)
- Two 24mm screws
- Eight 1/2" screws
- Twelve 8" wire-ties
- Contact information card
- X317-FSE Speaker Enclosures:
- 2 Unloaded speaker enclosures
- 35" Left front speaker harness
- 52" Right front speaker harness
- Five 8" wire ties
- One 30mm bolt
- 1 Flat washer
- 1 Nut
- 2 Warning decals
- Contact information
- MX-RSW16 Rear Speaker Harnesses:
- Two 17.5' Rear speaker harnesses
- Six 6" wire-ties w/ push-fastener ends
- Sixteen 7.5" wire-ties
- Contact information card
- X317-K4 Amplifier Wiring Kit:
- 11' 4-AWG Wiring harness (inline 100A maxi-fuse) w/attached 4' RCA/speaker harness
- Y-Harness
- Mounting plate
- 2 Brackets
- Fourteen 8" Wire ties
- Four 6.5" wire ties w/push-fasteners
- Four 10mm screws
- 2 Hex nuts
- 1 Flange nut
- Installation instructions
