JS Powersports

2017+ Can-Am X3 Stage 4 Audio System (Gen-3)

2017+ Can-Am X3 Stage 4 Audio System (Gen-3)

Regular price $2,699.99 USD
Regular price Sale price $2,699.99 USD
Sale Sold out

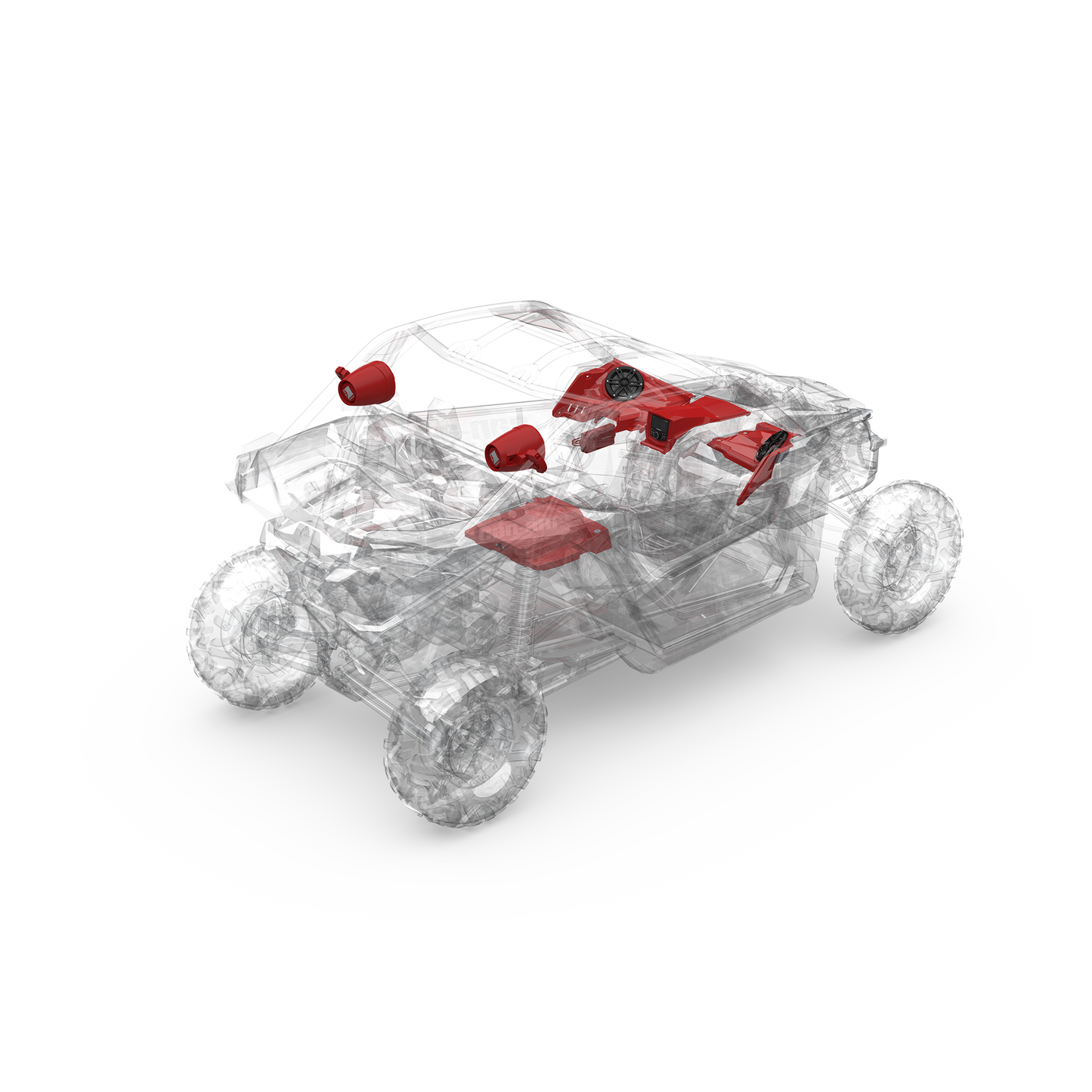

The Stage 4 kit is the complete package that combines the Stage 3 kit with our rear speaker option. Adding our RM1 series mini speaker enclosure and clamp system, this kit adds the last bit of sound that you need. Simply plug in the harness, mount the speakers and rock out. Whether hitting the dunes or the trails, you are sure to be the center of attention of any get-together. Compatible with factory equipped Smart-Lok module. 2017+ Can-Am Maverick X3 Stage-4 Installation

Product highlights:

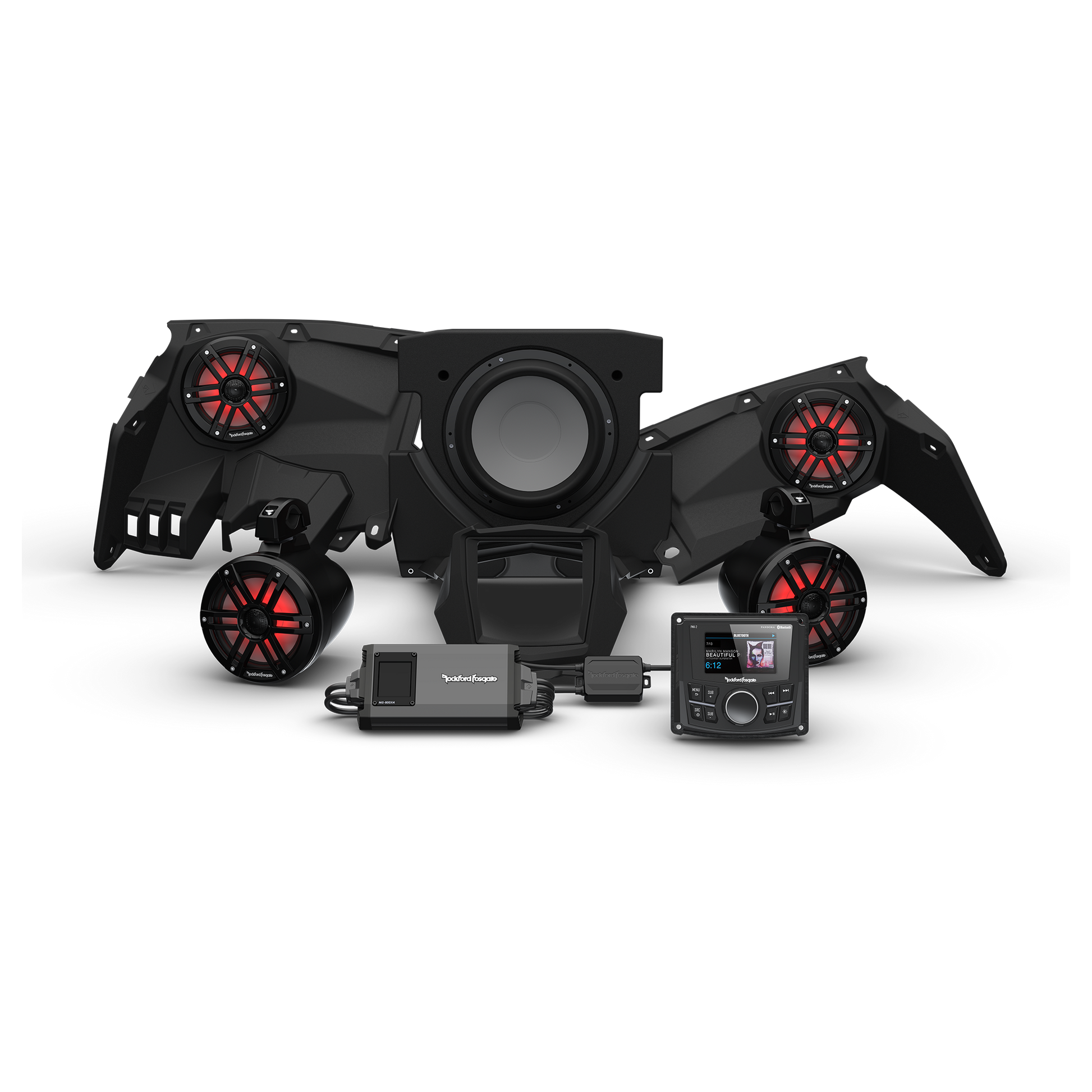

  • sound system includes a digital media receiver, two sets of speakers, a 4-channel amp, and a 10" subwoofer
  • also includes front and rear speaker pods, sub enclosure, wiring, amp kit and mounting plate
Rockford Fosgate PMX-2
  • marine digital media receiver with AM/FM/WB tuner (does not play CDs)
  • built-in amplifier (25 watts RMS/50 peak x 4 channels)
  • works with Apple and Android smartphones
  • USB port and aux input
  • built-in Bluetooth for music streaming (will not make calls)
  • warranty: 2 years
Rockford Fosgate M1-65B 6-1/2" 2-way front speakers
  • Color Optix-compatible
  • marine-rated speakers pre-loaded in custom-fit enclosures
  • power handling up to 75 watts RMS (150 watts peak)
  • salt-, fog-, and UV-resistant Santoprene rubber surround
  • integrated 1" dome tweeter
  • warranty: 2 years
Rockford Fosgate M1WL-65MB 6-1/2" roll bar speakers
  • same great sound and features as the front speakers
  • 360° rotational mounting capability for unlimited flexibility
  • high density poly-ethylene enclosure with UV inhibitors
  • warranty: 2 years
Rockford Fosgate M1D2-10B 10" marine subwoofer w/ enclosure
  • power handling: 300 watts RMS (1200 watts peak)
  • rugged, UV-stable injection-molded plastic construction
  • dual 2-ohm voice coils
  • durable Santoprene rubber surround
  • warranty: 1 year
Rockford Fosgate M5-800X4 4-channel amp
  • 100 watts RMS x 4 at 2 or 4 ohms (400 watts peak)
  • 200 watts RMS x 2 at 4 ohms in bridged mode
  • variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
  • front and rear tone controls (45 Hz, 12,500 Hz)

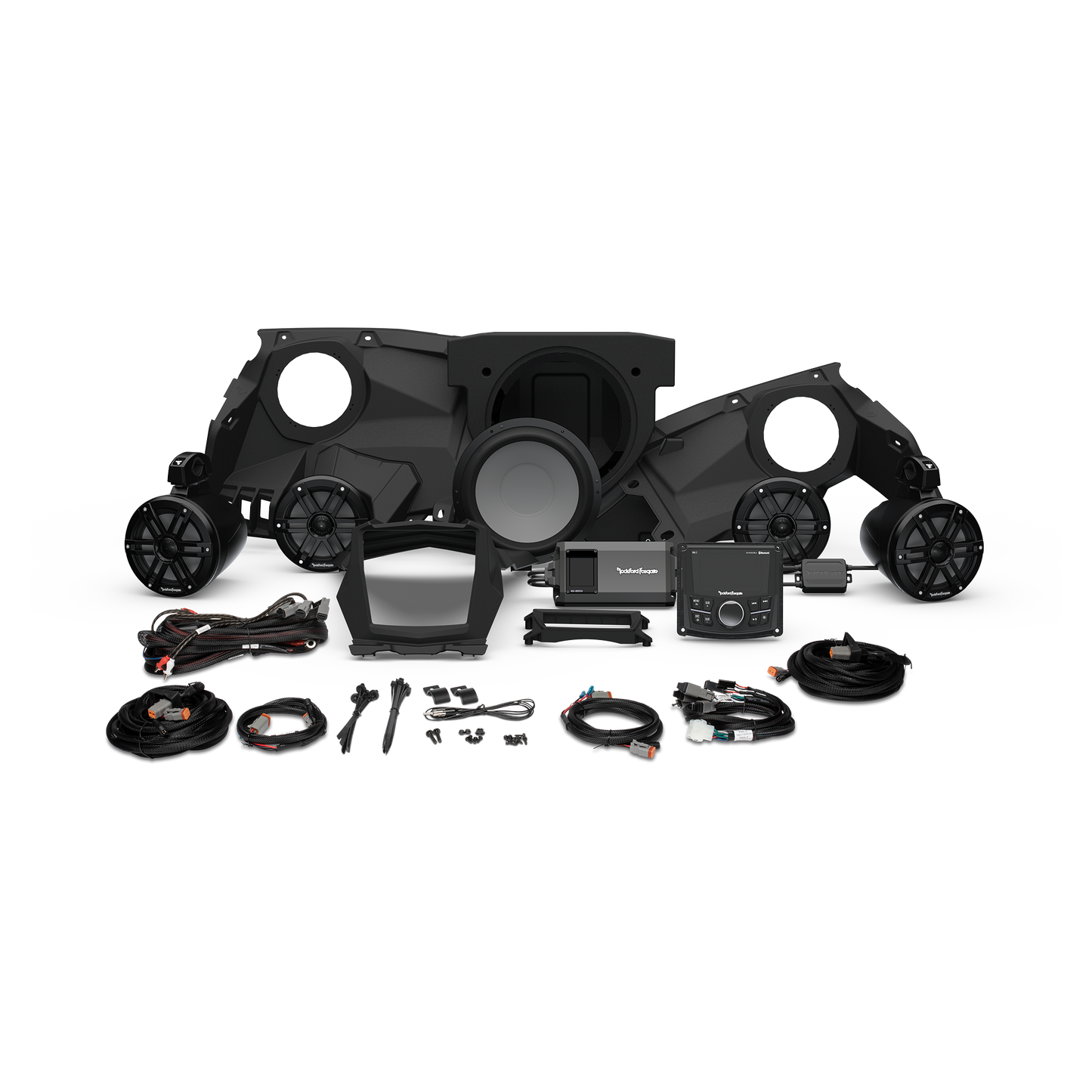

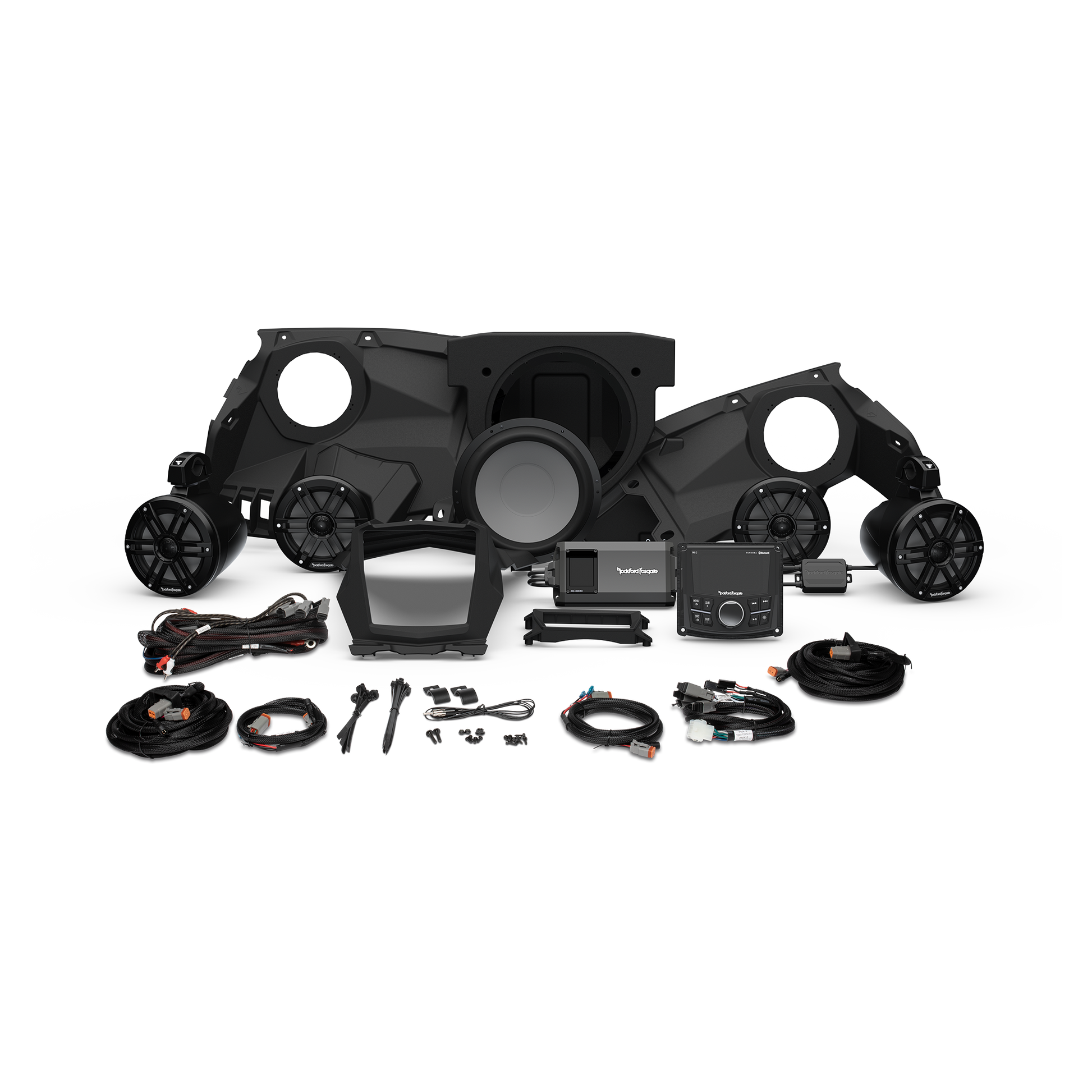

What's in the box:

  • This Rockford Fosgate package contains 10 individually boxed items:
  • PMX-2 Digital Media Receiver:
  • Marine digital media receiver
  • Trim-ring
  • Mounting plate
  • Mounting bracket
  • Wiring harness
  • Backstrap
  • 4 Machine screws
  • 4 Hex-nuts
  • Installation/Operation booklet
  • M1-65B 6.5" Speakers:
  • Two 2-way marine speakers
  • Two 11" LED power harnesses with 4-pin Deutsch connectors on one end
  • Twelve 1-1/4" Stainless steel Allen head screws
  • Two 3mm Allen head bits
  • 3.5mm Drill bit
  • Instruction manual (English/ French/ Spanish/ German/ Italian)
  • Rockford Fosgate contact information
  • M5-800X4 Amplifier:
  • 4-Channel powersports amplifier
  • 11" Power/ground/turn-on & speaker output harness (installed on amp)
  • 11" Input harness (installed on amp)
  • Two 14" RCA-to-Molex input adapters
  • Power/ground/turn-on adapter plug
  • Two 7.5" speaker output harnesses
  • 3mm Allen key
  • Owner's manual
  • Performance certificate
  • Contact information
  • M1WL-65MB Enclosed Rear Speakers:
  • Two M1 6.5" Moto-Can speakers w/installed sport grille
  • 2 Upper mounting brackets
  • 2 Lower mounting brackets
  • Four 1.0" - 1.6" rubber shims w/mounting hardware (four 1-3/8" bolts / 4 flat washers / 4 lock washers)
  • Four 1.6" - 2.0" rubber shims w/mounting hardware (four 1-3/4" bolts / 4 flat washers / 4 lock washers)
  • Two 12" 6-pin wire harnesses w/Deutsch connectors and integrated rubber seals
  • 2 Connection cover-plates
  • 4 Plastic grommets
  • 1/8" Hex bit
  • T-45 Torx wrench
  • Instruction manual
  • Contact information card
  • X317-M1FWE 10" Subwoofer:
  • Custom enclosure loaded with one M1D2-10B 10" subwoofer
  • 2 Mounting brackets
  • 9.5' 2-Wire harness
  • Fourteen 8" wire ties
  • Four 6.5" wire ties w/push-fasteners
  • Six 12mm hex-socket screws
  • Contact information
  • PMX-RGB Light Controller:
  • PMX-RGB LED Controller w/ attached 17" LED cables and 17" power/ground harness (inline 2A ATC fuse)
  • 6" Power/ground harness adapter
  • Two 3/4" machine-screws
  • 2 Nuts
  • 2 Lock-washers
  • Installation manual
  • X317-DK Dash Kit:
  • Radio housing
  • Trim ring
  • Rear support plate
  • 35" Speaker harness
  • 6' Wire antenna (Motorola plug on one end / bare-ended wire on other end)
  • Two 24mm screws
  • Eight 1/2" screws
  • Twelve 8" wire-ties
  • Contact information card
  • X317-FSE Speaker Enclosures:
  • 2 Unloaded speaker enclosures
  • 35" Left front speaker harness
  • 52" Right front speaker harness
  • Five 8" wire ties
  • One 30mm bolt
  • 1 Flat washer
  • 1 Nut
  • 2 Warning decals
  • Contact information
  • MX-RSW16 Rear Speaker Harnesses:
  • Two 17.5' Rear speaker harnesses
  • Six 6" wire-ties w/ push-fastener ends
  • Sixteen 7.5" wire-ties
  • Contact information card
  • RFX3-K8 Amplifier Wiring Kit:
  • 11' 8-AWG Wiring harness (inline 60A maxi-fuse) w/attached 4' RCA/speaker harness
  • Mounting plate
  • 2 Brackets
  • Fourteen 8" Wire ties
  • Four 6.5" wire ties w/push-fasteners
  • Four 10mm screws
  • 2 Hex nuts
  • 1 Flange nut
  • Installation instructions
