JS Powersports
2016+ Yamaha YXZ Stage 4 Audio System
2016+ Yamaha YXZ Stage 4 Audio System
Regular price
$2,299.99 USD
Regular price
Sale price
$2,299.99 USD
Unit price
/
per
Couldn't load pickup availability

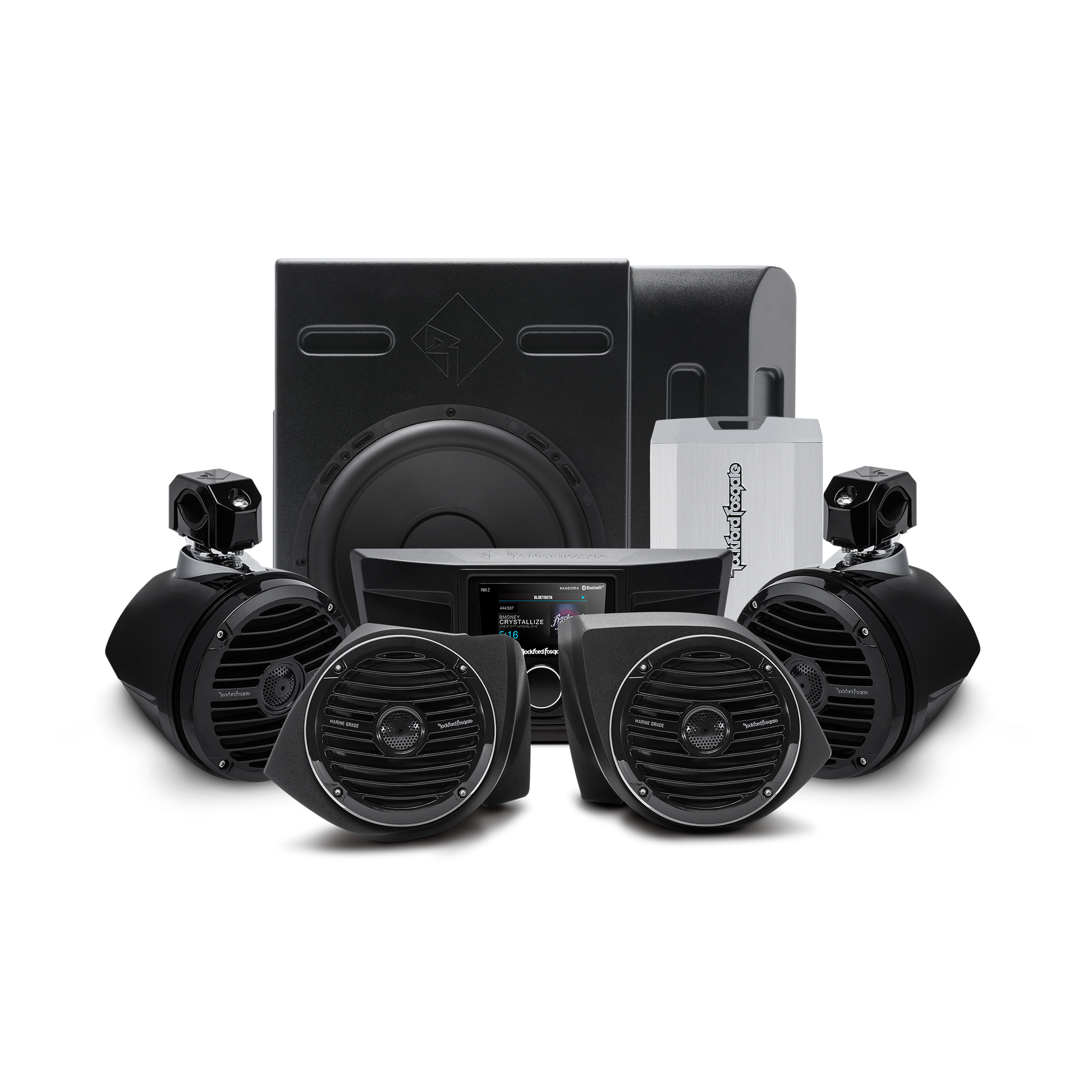

The Stage 4 kit is the complete package that combines the Stage 3 kit with our rear speaker option. Adding our RM1 series mini speaker enclosure and clamp system, this kit adds the last bit of sound that you need. Simply plug in the harness, mount the speakers and rock out. Whether hitting the dunes or the trails, you are sure to be the center of attention of any get-together. YXZ-STAGE4 Installation
Product highlights:
- system includes digital marine receiver, two sets of speakers, a 4-channel amp, and a 10" subwoofer
Rockford Fosgate PMX-2 marine digital media receiver (does not play CDs)
- built-in amplifier (20 watts RMS/50 peak x 4 channels)
- works with Apple and Android smartphones
- global AM/FM/Weather tuner
- 2.7" color display
- warranty: 2 years
Rockford Fosgate RM1652B 6-1/2" 2-way marine speakers
- power handling up to 75 watts RMS (105 watts peak)
- salt-, fog-, and UV-resistant Santoprene rubber surround
- integrated 1" volcano dome tweeter
- warranty: 2 years
Rockford Fosgate RM1652W-MB 6-1/2" Prime roll bar speakers
- enclosures loaded with marine-rated RM1652B marine speakers
- 360° rotational mounting capability for unlimited flexibility
- high density poly-ethylene enclosure with UV inhibitors
- warranty: 2 years
Rockford Fosgate RM110D2B 10" marine subwoofer
- power handling: 200 watts RMS (400 watts peak)
- rugged, UV-stable injection-molded plastic construction
- dual 2-ohm voice coils
- durable Santoprene rubber surround
- warranty: 2 years
Rockford Fosgate TM400X4ad 4-channel amp
- 100 watts RMS x 4 at 4 ohms
- Class AD amp technology
- variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
- twin cooling fans and real-time thermal sensing
What's in the box:
Rockford Fosgate YXZ-STAGE4 owner's manual
- Rockford Fosgate PMX-2:
- Marine digital media receiver
- Trim-ring
- Mounting plate
- Mounting bracket
- Wiring harness
- Backstrap
- 4 Machine screws
- 4 Hex-nuts
- Installation & Operation booklet
- Rockford Fosgate RFYXZ-PMXDK:
- Dash bezel
- Power harness
- PMX-2 harness
- PMX-0 harness (in-line 15A fuse)
- PMX-2 housing
- PMX-0 housing
- Metal bracket
- Rubber grommet
- 8 Hex-head screws
- 4 Hex-nuts
- 4 Bullet-connectors
- Clear plastic drill guide
- Installation & Operation booklet
- Rockford Fosgate T400X4AD:
- Four-channel amplifier
- Two 14" Input harnesses (4-pin Molex connector to 2 female RCAs)
- Two 8" Speaker output harness (4-pin Molex connector to bare wire)
- Setup disc CD-ROM
- Amplifier Quick Setup sheet
- Certificate of Performance Verification
- Rockford Fosgate RM1652B:
- Two 2-way marine speakers (with fixed grilles)
- Eight 1-1/4" Stainless steel Allen head screws
- 3mm Allen head bit
- 8 Speed clips
- Installation & Operation booklet
- Rockford Fosgate RM1652W-MB:
- 2 Wakeboard tower speakers
- 2 Mounting couplers
- Two 16" Speaker harnesses
- 4 Plastic grommets
- 4 Mounting bolts
- 2 Security bolts (pre-installed)
- 4 Nuts
- 2 Safety lanyards
- 2 Lanyard washers
- Torx wrench
- Installation & Operation Manual
- Rockford Fosgate RM110D2B:
- 10" Woofer
- Grille
- 8 Screws
- Installation & Operation booklet
- Rockford Fosgate RFYXZ-FSE:
- 2 Front lower speaker enclosures
- 2 Speaker wire harnesses
- 2 Bolts
- 2 Nuts
- 2 Self-adhesive foam pads
- 6 Wire-ties
- Installation & Operation booklet
- Rockford Fosgate RFYXZ-FWE:
- Front subwoofer enclosure
- Subwoofer harness
- Self-adhesive foam
- Installation & Operation booklet
- Rockford Fosgate RFYXZ-K8:
- Wiring harness (inline 60A Maxi-fuse)
- Mounting plate
- 4 Screws
- 10 Wire-ties
- Installation & Operation booklet
- Rockford Fosgate PM-CL2B:
- 2 Mounting clamps
- Rockford Fosgate RFXZ-RSW16:
- 10.5' Left rear speaker harness
- 10.5 Right rear speaker harness
- 20 Wire-ties
- Installation Instructions
