2014-2023 RZR 900/XP 1000/XP Turbo/Turbo S Stage 4 For RIDE COMMAND (Gen 3)
2014-2023 RZR 900/XP 1000/XP Turbo/Turbo S Stage 4 For RIDE COMMAND (Gen 3)
Regular price
$2,099.99 USD
Regular price
Sale price
$2,099.99 USD
Unit price
/
per
Couldn't load pickup availability

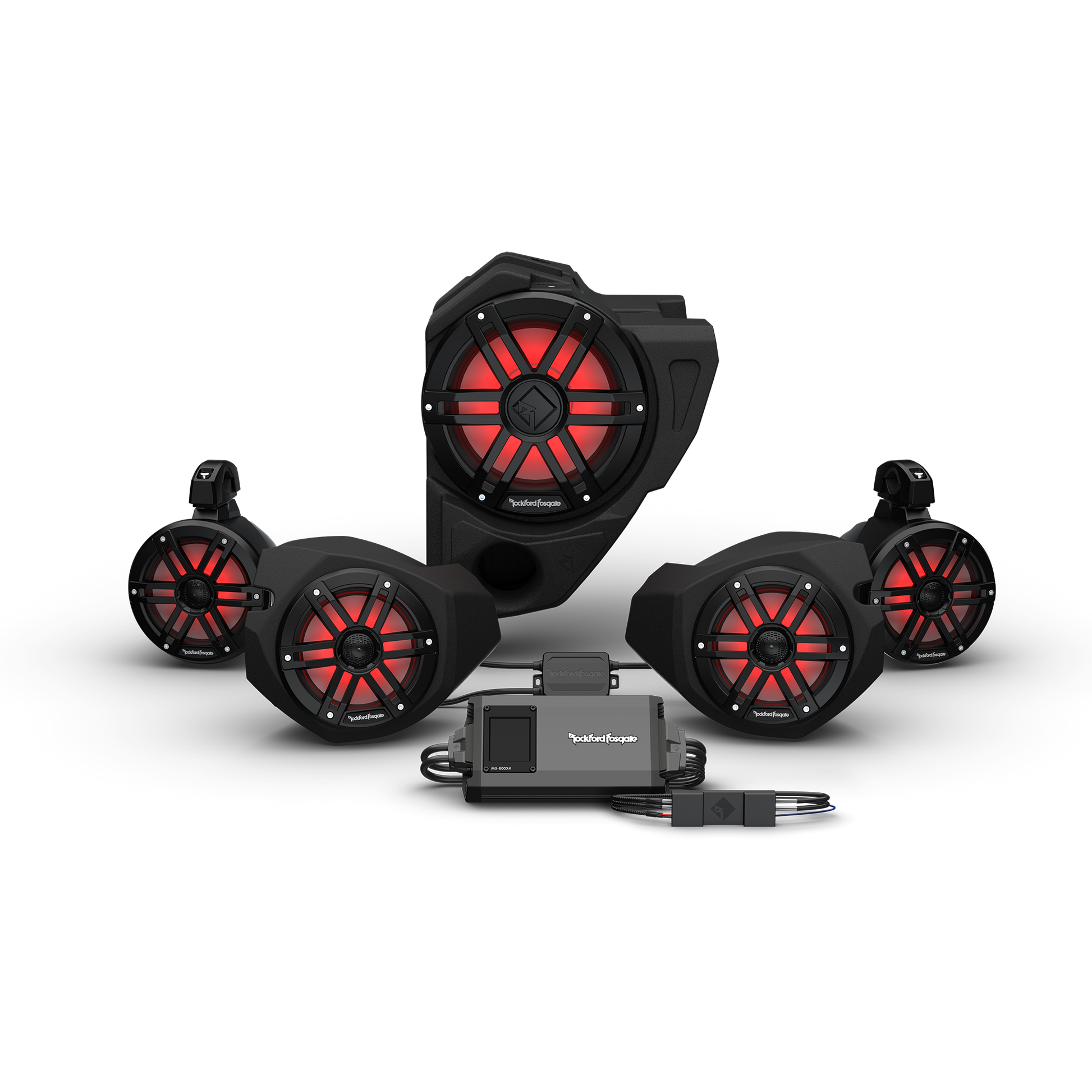

Product highlights:
- sound system includes two sets of speakers, a 4-channel amp, and a 10" subwoofer
- also includes front and rear speaker pods, sub enclosure, Ride Command interface, wiring, amp kit and mounting plate
Rockford Fosgate M1-65B 6-1/2" 2-way front speakers
- Color Optix-compatible
- marine-rated speakers pre-loaded in custom-fit enclosures
- power handling up to 75 watts RMS (150 watts peak)
- salt-, fog-, and UV-resistant Santoprene rubber surround
- integrated 1" dome tweeter
- warranty: 2 years
Rockford Fosgate M1WL-65MB 6-1/2" roll bar speakers
- same great sound and features as the front speakers
- 360° rotational mounting capability for unlimited flexibility
- high density poly-ethylene enclosure with UV inhibitors
- warranty: 2 years
Rockford Fosgate M1D2-10B 10" marine subwoofer w/ enclosure
- power handling: 300 watts RMS (1200 watts peak)
- rugged, UV-stable injection-molded plastic construction
- dual 2-ohm voice coils
- durable Santoprene rubber surround
- warranty: 2 years
Rockford Fosgate M5-800X4 4-channel amp
- 100 watts RMS x 4 at 2 or 4 ohms (400 watts peak)
- 200 watts RMS x 2 at 4 ohms in bridged mode
- variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
- front and rear tone controls (45 Hz, 12,500 Hz)

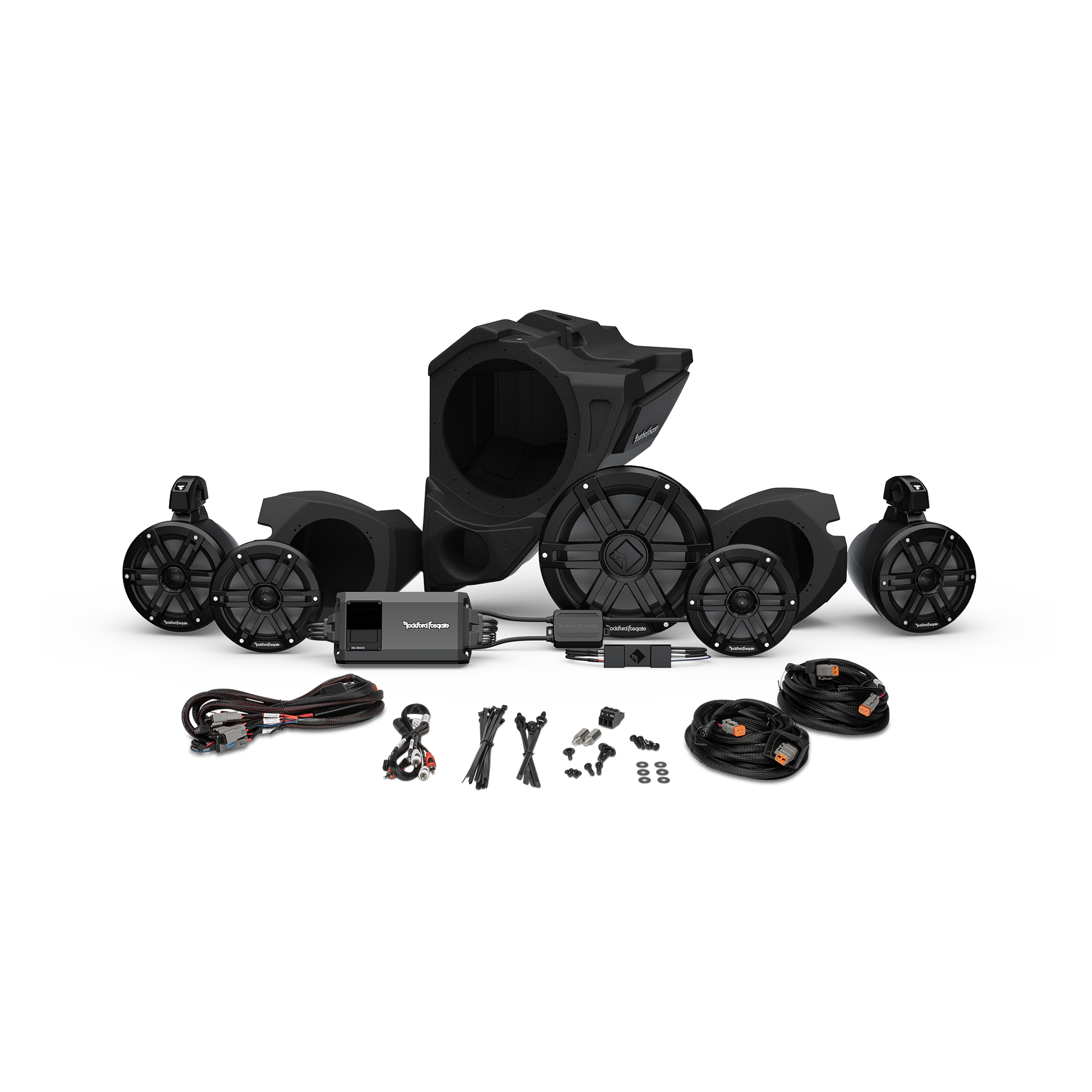

What's in the box:
- This package contains 10 individually boxed items:
- M5-800X4 Amplifier:
- 4-Channel powersports amplifier
- 11" Power/ground/turn-on & speaker output harness (installed on amp)
- 11" Input harness (installed on amp)
- Two 14" RCA-to-Molex input adapters
- Power/ground/turn-on adapter plug
- Two 7.5" speaker output harnesses
- 3mm Allen key
- Owner's manual
- Performance certificate
- Contact information
- M1-65B 6.5" Speakers:
- Two 2-way marine speakers
- Two 11" LED power harnesses with 4-pin Deutsch connectors on one end
- Twelve 1-1/4" Stainless steel Allen head screws
- Two 3mm Allen head bits
- 3.5mm Drill bit
- Instruction manual (English/ French/ Spanish/ German/ Italian)
- Rockford Fosgate contact information
- M1WL-65MB Moto-Can Speakers:
- Two M1 6.5" Moto-Can speakers w/installed sport grille
- 2 Upper mounting brackets
- 2 Lower mounting brackets
- Four 1.0" - 1.6" rubber shims w/mounting hardware (four 1-3/8" bolts / 4 flat washers / 4 lock washers)
- Four 1.6" - 2.0" rubber shims w/mounting hardware (four 1-3/4" bolts / 4 flat washers / 4 lock washers)
- Two 12" 6-pin wire harnesses w/Deutsch connectors and integrated rubber seals
- 2 Connection cover-plates
- 4 Plastic grommets
- 1/8" Hex bit
- T-45 Torx wrench
- Instruction manual
- Contact information card
- M1D2-10B Subwoofer:
- One 10" marine subwoofer
- One 11" LED power harnesses with 4-pin Deutsch connector on one end
- Six 1-3/4" Stainless steel Allen head screws
- 4mm Allen head bit
- 4.5mm Drill bit
- Instruction manual (English/ French/ Spanish/ German/ Italian)
- Rockford Fosgate contact information
- PMX-RGB Color Optix Light Controller:
- LED Controller w/ attached 17" LED cables and 17" power/ground harness (inline 2A ATC fuse)
- 6" Power/ground harness adapter
- Two 3/4" machine-screws
- 2 Nuts
- 2 Lock-washers
- Installation manual
- RZR14-FWE Subwoofer Enclosure:
- Subwoofer enclosure w/ attached 28" internal speaker wire
- 30" Wiring harness
- 1 Port plug
- Two 1" screws
- 2 Flat-washers
- Two 1-1/2" adhesive foam pads
- One 14" section of bare-ended red wire
- Five 8" wire-ties
- One 14" wire-tie
- Contact information
- RZR14-FSE 6.5" Enclosures:
- 2 Empty speaker pods w/ attached 38" wire harness
- 2 Threaded studs
- 4 Mounting screws
- 2 Mounting bolts
- 6 Washers
- Hex-head screwdriver
- Five 8" wire-ties
- Rockford Fosgate Contact information
- MX-RSW16 Speaker Harnesses:
- Two 17.5' Rear speaker harnesses
- Six 6" wire-ties w/ push-fastener ends
- Sixteen 7.5" wire-ties
- Contact information card
- RZR14-K8 Amplifier Wiring Kit:
- 9.5' Power/ground/speaker harness (inline 60A Maxi fuse)
- Two 30" RCA-to-Molex harnesses
- 2 Amplifier mounting plates (large & small)
- Two 25mm Torx-socket screws
- One 12mm Torx-socket screw
- Four 10mm Torx-socket screws
- Twenty 8" Wire-ties
- Four 6" zip-ties w/ push-fastener ends
- Installation manual
- RFPOL-RC34:
- Polaris Ride Command interface (attached 12" input and 5" output harnesses)
- Instructions
