JS Powersports
2014-2023 RZR 900/XP 1000/XP Turbo/Turbo S Stage 3 (Gen 3)
2014-2023 RZR 900/XP 1000/XP Turbo/Turbo S Stage 3 (Gen 3)
Regular price
$1,799.99 USD
Regular price
Sale price
$1,799.99 USD
Unit price
/
per
Couldn't load pickup availability

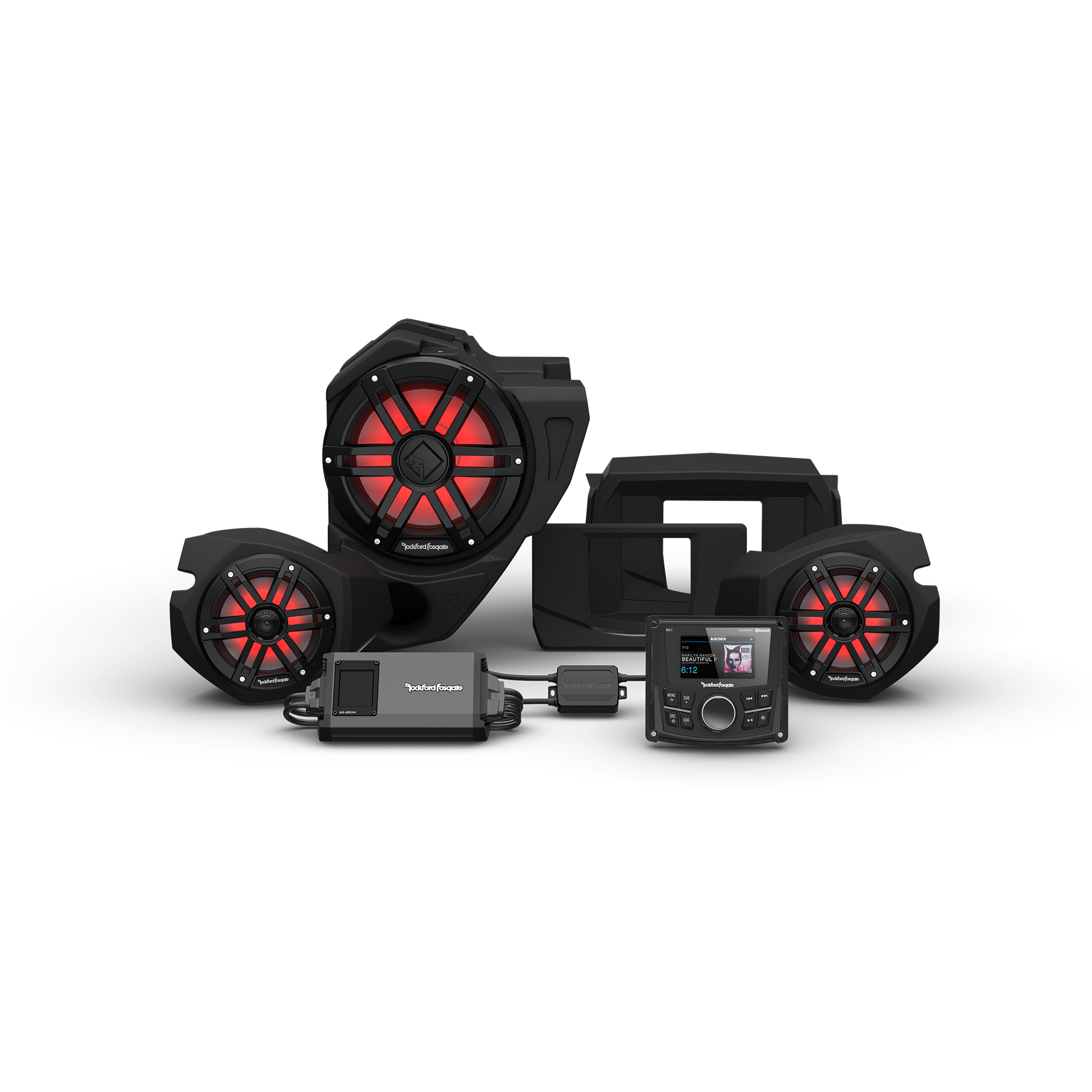

Product highlights:
- Element Ready sound system includes a digital media receiver, 6-1/2" speakers, a 4-channel amp, and a 10" subwoofer
- also includes front speaker pods, sub enclosure, wiring, amp kit and mounting plate
Rockford Fosgate PMX-2
- marine digital media receiver with AM/FM/WB tuner (does not play CDs)
- built-in amplifier (25 watts RMS/50 peak x 4 channels)
- works with Apple and Android smartphones
- built-in Bluetooth for music streaming (will not make calls)
- USB port and aux input
- warranty: 2 years
Rockford Fosgate M1-65B 6-1/2" 2-way speakers
- Color Optix-compatible
- marine-rated speakers pre-loaded in custom-fit enclosures
- power handling up to 75 watts RMS (150 watts peak)
- salt-, fog-, and UV-resistant Santoprene rubber surround
- integrated 1" dome tweeter
- warranty: 2 years
Rockford Fosgate M1D2-10B 10" marine subwoofer w/ enclosure
- power handling: 300 watts RMS (1200 watts peak)
- rugged, UV-stable injection-molded plastic construction
- dual 2-ohm voice coils
- durable Santoprene rubber surround
- warranty: 2 years
Rockford Fosgate M5-800X4 4-channel amp
- 100 watts RMS x 4 at 2 or 4 ohms (400 watts peak)
- 200 watts RMS x 2 at 4 ohms in bridged mode
- variable low- and high-pass filters (50-250 Hz at 12 dB/octave)
- front and rear tone controls (45 Hz, 12,500 Hz)

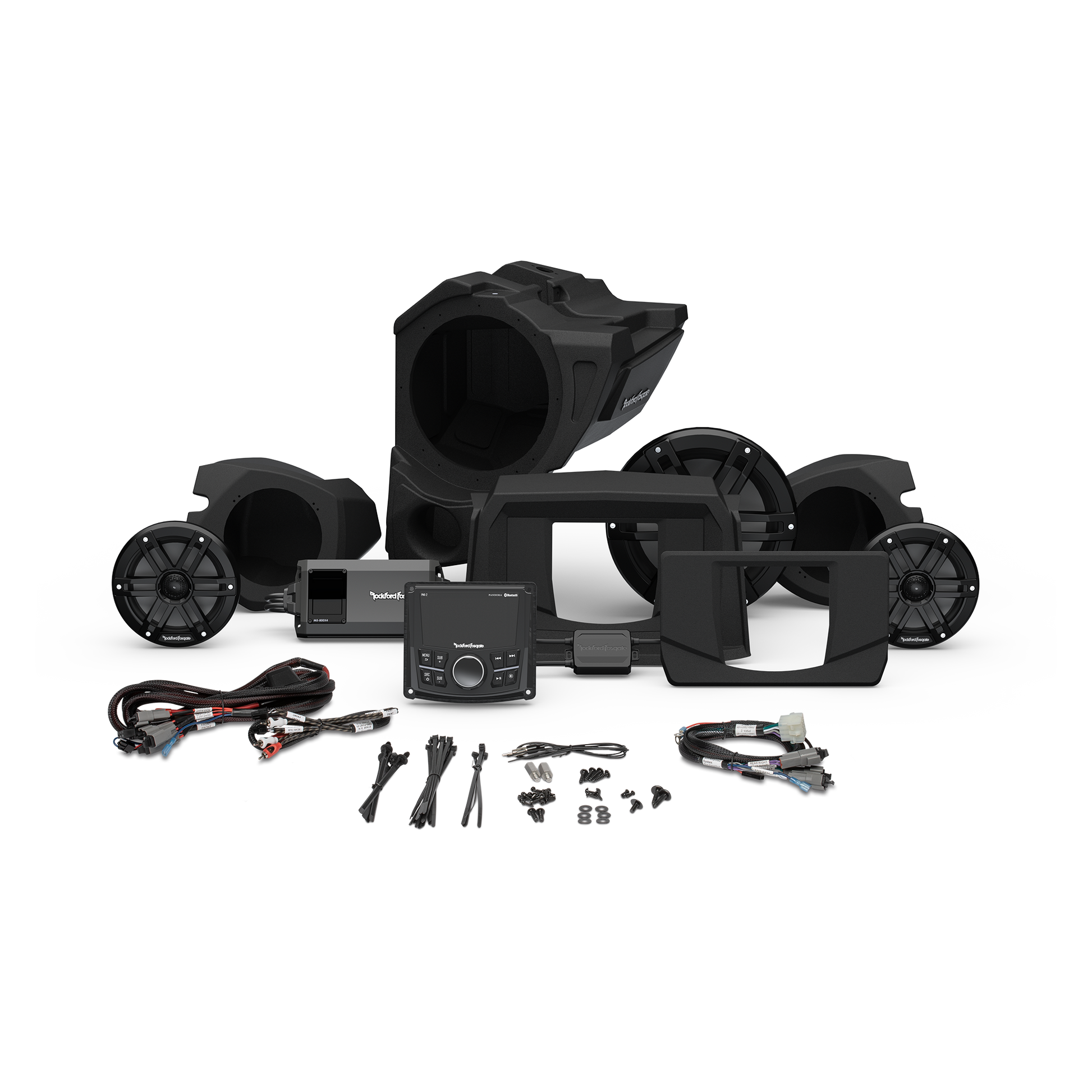

What's in the box:
- This package contains 9 individually boxed items:
- PMX-2 Receiver:
- Marine digital media receiver
- Trim-ring
- Mounting plate
- Mounting bracket
- Wiring harness
- Backstrap
- 4 Machine screws
- 4 Hex-nuts
- Installation/Operation booklet
- M5-800X4 Amplifier:
- 4-Channel powersports amplifier
- 11" Power/ground/turn-on & speaker output harness (installed on amp)
- 11" Input harness (installed on amp)
- Two 14" RCA-to-Molex input adapters
- Power/ground/turn-on adapter plug
- Two 7.5" speaker output harnesses
- 3mm Allen key
- Owner's manual
- Performance certificate
- Contact information
- M1-65B 6.5" Speakers:
- Two 2-way marine speakers
- Two 11" LED power harnesses with 4-pin Deutsch connectors on one end
- Twelve 1-1/4" Stainless steel Allen head screws
- Two 3mm Allen head bits
- 3.5mm Drill bit
- Instruction manual (English/ French/ Spanish/ German/ Italian)
- Rockford Fosgate contact information
- M1D2-10B Subwoofer:
- One 10" marine subwoofer
- One 11" LED power harnesses with 4-pin Deutsch connector on one end
- Six 1-3/4" Stainless steel Allen head screws
- 4mm Allen head bit
- 4.5mm Drill bit
- Instruction manual (English/ French/ Spanish/ German/ Italian)
- Rockford Fosgate contact information
- PMX-RGB Color Optix Light Controller:
- LED Controller w/ attached 17" LED cables and 17" power/ground harness (inline 2A ATC fuse)
- 6" Power/ground harness adapter
- Two 3/4" machine-screws
- 2 Nuts
- 2 Lock-washers
- Installation manual
- RZR14-DK Radio Mounting Kit:
- Trim-panel
- Metal mounting plate
- Plastic mounting frame
- 2 Outer trim-panels (upper/lower)
- 36" 12-Pin power/ground/speaker harness
- 6' Wire antenna (Motorola plug on one end / bare-ended wire on other end)
- 24 Hex-socket screws
- Rockford Fosgate Contact information
- RZR14-FWE Subwoofer Enclosure:
- Subwoofer enclosure w/ attached 28" internal speaker wire
- 30" Wiring harness
- 1 Port plug
- Two 1" screws
- 2 Flat-washers
- Two 1-1/2" adhesive foam pads
- One 14" section of bare-ended red wire
- Five 8" wire-ties
- One 14" wire-tie
- Contact information
- RZR14-FSE 6.5" Enclosures:
- 2 Empty speaker pods w/ attached 38" wire harness
- 2 Threaded studs
- 4 Mounting screws
- 2 Mounting bolts
- 6 Washers
- Hex-head screwdriver
- Five 8" wire-ties
- Rockford Fosgate Contact information
- RZR14-K8 Amplifier Wiring Kit:
- 9.5' Power/ground/speaker harness (inline 60A Maxi fuse)
- Two 30" RCA-to-Molex harnesses
- 2 Amplifier mounting plates (large & small)
- Two 25mm Torx-socket screws
- One 12mm Torx-socket screw
- Four 10mm Torx-socket screws
- Twenty 8" Wire-ties
- Four 6" zip-ties w/ push-fastener ends
- Installation manual
